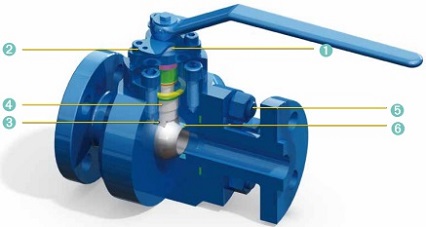

| 2PC Body Forge Floating Ball Valve: NPT/SW/BW/RF/RTJ | ||
| Features | Specifications | |
| Size: 1/2″~10″ | Design | ASME 16.34/BS 5351 |
| Class: 150~2500 | Face to Face | ASME B16.10 |
| Two Pieces Forge Steel Body | End to End | ASME B16.10 |
| Floating Ball, Full & Reduced Bore | End Flange | ASME B16.5 |
| Anti-Static Device | BW End | ASME B16.25 |
| Blow-out Proof Stem | Test | API 598/ BS 6755 |
| Fire Safe Design | Fire Safe Test | API 607/API 6FA |
| Low Emission | Special | NACE MR-01-7 |

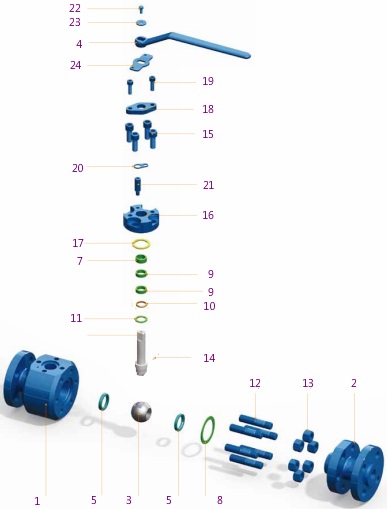

| ITEM | PART | STANDARD MATERIAL | STAINLESS STEEL | SOUR SERVICE | LOW-TEMP. SERVICE |
|---|---|---|---|---|---|
| 1 | Body | ASTM A105N | ASTM A182 F316 | ASTM A105N | ASTM A350 LF2 |
| 2 | Bonnet | ASTM A105N | ASTM A182 F316 | ASTM A105N | ASTM A350 LF2 |
| 3 | Ball | ASTM A105N/ ENP | ASTM A182 F316 | ASTM A105N/ ENP | ASTM A182 F316 |
| 4 | Lever | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel |
| 5 | Seat Ring | PTFE | PTFE | PTFE | PTFE |
| 6 | Stem | ASTM A182 F6a | ASTM A182 F316 | ASTM A182 F6a | ASTM A182 F316 |
| 7 | Gland | ASTM A276 420 | ASTM A276 316 | ASTM A276 420 | ASTM A276 316 |
| 8 | Gasket | 316SS+Graphite | 316SS+Graphite | 316SS+Graphite | 316SS+Graphite |
| 9 | Packing Set | Graphite | Graphite | Graphite | Graphite |
| 10 | Space Ring | ASTM A276 420 | ASTM A182 F316 | ASTM A276 420 | ASTM A182 F316 |
| 11 | Thrust Washer | PTFE | PTFE | PTFE | PTFE |
| 12 | Stud | ASTM A193 B7 | ASTM A193 B8 | ASTM A193 B7M | ASTM A193 L7M |
| 13 | Nut | ASTM A194 2H | ASTM A194 8 | ASTM A194 2HM | ASTM A194 7M |
| 14 | Anti-Static | SS | SS | SS | SS |
| 15 | Bolt | Carbon Steel | SS | Carbon Steel | SS |
| 16 | Gland Cap | ASTM A105N | ASTM A182 F316 | ASTM A105N | ASTM A350 LF2 |
| 17 | Gasket | 316SS+Graphite | 316SS+Graphite | 316SS+Graphite | 316SS+Graphite |
| 18 | Gland Flange | ASTM A216 WCB | ASTM A351 CF8 | ASTM A216 WCB | ASTM A352 LCB |
| 19 | Bolt | ASTM A193 B7 | ASTM A193 B8 | ASTM A193 B7M | ASTM A193 L7M |
| 20 | Locking Plate | SS | SS | SS | SS |
| 21 | Screw | SS | SS | SS | SS |
| 22 | Bolt | Carbon Steel | SS | Carbon Steel | SS |
| 23 | Washer | Carbon Steel | SS | Carbon Steel | SS |
| 24 | Stop Plate | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel |
