Cl150,300,600Lb Cast Steel Bolt Bonnet Gate Valve

Class 150, 300,600Lb Cast Steel Bolted Bonnet Gate Valves

Structure of Cl 150 Lb Gate Valves
No. Parts Materials
1 Body ASTM A216 GR.WCB
2 Seat Ring ASTM A105+Stellite Faced
3 Disc ASTM A216 GR.WCB+13Cr Faced
4 Stem ASTM A182 GR.F6
5 Gasket Soft Iron + Graphite
6 Bonnet ASTM A216 GR.WCB
7 Bonnet Bolt Nuts ASTM A194 GR.2H
8 Bonnet Bolts ASTM A193 GR.B7
9 Backseat Bushing ASTM A276 Type 410
10 Stem Packing Braided Graphite & Die formed Graphite Ring
11 Eyebolt Pins Carbon Steel
12 Gland Eyebolts ASTM A307 GR.B
13 Gland ASTM A276 Type 410
14 Gland Flange ASTM A216 GR.WCB
15 Eyebolt Nuts ASTM A194 GR.2H
16 Grease Nipple Carbon Steel
17 Stem Nut ASTM A439 GR.D-2
18 Retaining Nut Carbon Steel
19 Hand wheel Ductile Iron
20 Hand wheel Nut Carbon Steel
21 Screw Carbon Steel
22 Yoke ASTM A216 GR.WCB
23 Yoke Pan Bolt ASTM A194 GR.2H
24 Nuts Yoke Pan Bolts ASTM A193 GR.B7
25 Bearing Steel
26 Lantern Ring on Request ASTM A276 Type 410


Structure of Cl 300 Lb Gate Valves                                    Structure of Cl 600 Lb Gate Valves

ASME Pressure Class 150 Lb-Cast Steel body-Flanged Ends
Metal Seated-Handwheel or Gear Operator-Dimensions and Weights


SIZE in 2 2.5 3 4 6 8 10 12 14 16 18 20 24 28 30 32 36
mm 50 65 80 100 150 200 250 300 350 400 450 500 600 700 750 800 900
L in 7.00 7.5 8 9 10.5 11.5 13 14 15 16 17 18 20 24 24 28 28
mm 178 191 203 229 267 292 330 356 381 406 432 457 508 610 610 711 711
L1 in 8.50 9.5 11.12 12 15.88 16.5 18 19.75 22.5 24 26 28 32 36 36 38 40
mm 216 241 283 305 403 419 457 502 572 610 660 711 813 914 914 965 1016
L2 in 7.50 8 8.5 9.5 11 12 13.5 14.5 15.5 16.5 17.5 18.5 20.5 – – – –
mm 191 203 216 241 279 305 343 368 394 419 445 470 521 – – – –
H in 15.31 17.28 19.69 23.43 30.59 38.39 45.67 54.72 61.22 71.30 82.80 90.55 102.72 130.98 141.97 145.98 154.49
mm 389 439 500 595 777 975 1160 1390 1555 1811 2303 2300 2609 3327 3606 3708 3924
W in 8 8 10 10 14 14 16 18 22 24 25 27 30 24 24 24 24
mm 200 200 250 250 350 350 400 450 560 600 640 680 760 610 610 610 610
Weight RF kg 17 23 29 47 80 129 192 287 410 571 720 1170 1466 1931 2380 2490 3600

ASME Pressure Class 300 Lb-Cast Steel body-Flanged Ends
Metal Seated-Handwheel or Gear Operator-Dimensions and Weights


Features

Outside Screw and Yoke (OS & Y), Rising Stem
Bolted Bonnet
Flexible Wedge (2″ Solid)
Extended Bonnet for Cryogenic Services
By Pass on Request
Locking Device Optional

Specifications

Design: ASME B16.34/API 600
Face to Face: ASME B16.10
End to End: ASME B16.10
End Flange: ASME B16.5/B16.47
BW End: ASME B16.25
Test: API 598
Special: NACE MR-01-75

Categories
Gate Valves

Cl900,1500Lb Bolted Bonnet Gate Valve

Cl 900, 1500 Lb Cast Steel Gate Valves

Structure of Cl 900 Lb Gate Valves
No. Parts Materials
1 Body ASTM A216 GR.WCB
2 Seat Ring ASTM A105+Stellite Faced
3 Disc ASTM A216 GR.WCB+13Cr Faced
4 Stem ASTM A182 GR.F6
5 Gasket Soft Iron + Graphite
6 Bonnet ASTM A216 GR.WCB
7 Bonnet Bolt Nuts ASTM A194 GR.2H
8 Bonnet Bolts ASTM A193 GR.B7
9 Backseat Bushing ASTM A276 Type 410
10 Stem Packing Braided Graphite & Die formed Graphite Ring
11 Eyebolt Pins Carbon Steel
12 Gland Eyebolts ASTM A307 GR.B
13 Gland ASTM A276 Type 410
14 Gland Flange ASTM A216 GR.WCB
15 Eyebolt Nuts ASTM A194 GR.2H
16 Grease Nipple Carbon Steel
17 Stem Nut ASTM A439 GR.D-2
18 Retaining Nut Carbon Steel
19 Hand wheel Ductile Iron
20 Hand wheel Nut Carbon Steel
21 Screw Carbon Steel
22 Yoke ASTM A216 GR.WCB
23 Yoke Pan Bolt ASTM A194 GR.2H
24 Nuts Yoke Pan Bolts ASTM A193 GR.B7
25 Bearing Steel
26 Lantern Ring on Request ASTM A276 Type 410


Features

Outside Screw and Yoke (OS & Y), Rising Stem
Bolted Bonnet
Flexible Wedge (2″ Solid)
Extended Bonnet for Cryogenic Services
By Pass on Request
Locking Device Optional

Specifications

Design: ASME B16.34/API 600
Face to Face: ASME B16.10
End to End: ASME B16.10
End Flange: ASME B16.5/B16.47
BW End: ASME B16.25
Test: API 598
Special: NACE MR-01-75

Categories
Gate Valves

Cast Steel Pressure Seal Gate Valve

Cast Steel Pressure Seal Gate Valve
CL600,900,1500,2500Lb

Structure of Pressure Seal Gate Valves
No. Parts Materials
1 Body ASTM A216 GR.WCB
2 Seat Ring ASTM A105+Stellite Faced
3 Disc ASTM A216 Gr. WCB + Stellite Faced
4 Stem ASTM A182 Gr.F6
5 Bonnet ASTM A216 Gr. WCB + Stellite Faced
6 Gasket ASTM A182 Gr.F304
7 Thrust Ring ASTM A276 Type 410
8 Separate Ring Carbon Steel
9 Lantern Ring On Request ASTM A276 Type 410
10 Bonnet Retainer Carbon Steel
11 Bonnet Bolts ASTM A193 GR.B7
12 Bonnet Bolt Nuts ASTM A194 GR.2H
13 Yoke Bolts ASTM A193 GR.B7
14 Yoke Bolt Nuts ASTM A194 GR.2H
15 Gland Eye ASTM A216 GR.WCB
16 Stem Packing Braided Graphite & Die formed Graphite Ring
17 Gland ASTM A276 Type 410
18 Gland Flange ASTM A216 GR.WCB
19 Eye Bolt Pins Carbon Steel
20 Gland Eye Bolts ASTM A193 GR.B7
21 Eye Bolt Nuts ASTM A194 GR.2H
22 Yoke ASTM A216 GR.WCB
23 Bearing Steel
24 Stem Nut ASTM A439 GR.D-2
25 Grease Nipple Carbon Steel
26 Retaining Nut Carbon Steel
27 Hand Wheel Ductile Iron
28 Hand Wheel Nut Carbon Steel

ASME Pressure Class 600 Lb-Dimensions and Weights

Size inch 2 2-1/2 3 4 5 6 8 10 12 14 16 18 20 24
L-L2 mm 292 330 356 432 508 559 660 787 838 889 991 1092 1194 1397
L-L1 mm 178 216 254 305 381 457 584 711 813 889 991 1092 1194 1397
H mm 525 610 650 775 825 1050 1200 1450 1600 1800 2050 2245 2400 2670
W mm 250 250 300 350 400 500 600 600 400~ 450~ 450~ 500~ 500~ 550~
Wt kg 35 55 62 105 160 205 400 690 815 1125 1650 2025 2325 3980

     ASME Pressure Class 900 Lb-Dimensions and Weights

Size inch 2 2-1/2 3 4 5 6 8 10 12 14 16 18 20
L-L2 mm 368 419 381 457 559 610 737 838 965 1029 1130 1219 1321
L-L1 mm 216 254 305 356 432 508 660 787 914 991 1092 1219 1321
H mm 550 645 670 790 855 1075 1225 1500 1635 1830 2145 2300 2485
W mm 300 300 300 400 450 300~ 350~ 400~ 400~ 450~ 500~ 500~ 550~
Wt kg 75 90 96 136 225 275 490 825 1150 1500 2100 2750 3400

ASME Pressure Class 1500 Lb-Dimensions and Weights

Size inch 2 2-1/2 3 4 5 6 8 10 12
L-L2 mm 368 419 470 546 673 705 832 991 1130
L-L1 mm 216 254 305 406 483 559 711 864 991
H mm 570 670 725 850 890 1125 1235 1520 1650
W mm 300 300 300~ 300~ 300~ 350~ 350~ 400~ 400~
Wt kg 95 110 125 205 256 330 655 1200 2010

ASME Pressure Class 2500 Lb-Dimensions and Weights

Size inch 2 2-1/2 3 4 5 6
L-L1 mm 451 508 578 673 794 914
L-SP mm 279 330 368 457 533 610
H mm 600 695 740 890 970 1135
K mm 400 450 300~ 350~ 350~ 350~
Wt kg 110 130 140 225 295 1480

Features

Outside Screw and Yoke (OS & Y), Rising Stem
Pressure Seal
Flexible Wedge
Backseat Weld-Deposited
By Pass on Request
Locking Device Optional
Gear Optional

Specifications

Design: ASME B16.34
Face to Face: ASME B16.10
End to End: ASME B16.10
End Flange: ASME B16.5
BW End: ASME B16.25
Test: API 598
Special: NACE MR-01-75

Categories
Gate Valves

Forge Steel Pressure Seal Gate Valve

Forge Steel Pressure Seal Gate Valve
CL900, 1500, 2500Lb

Material list for main parts
No. Part name ASTM
Carbon steel Tainless steel Alloy steel
1 Body A105 LF2/LF3 A182 F304 A182 F11/F22
2 Seat A182F6a A182F6a A182 F304 A182 F6a
3 Wedge A182F6a A182f6a A182 F304 A182 F6a
4 Stem A276-410 A276-410 A276-304 A276-410
5 Gasket Graphite+304
6 Sealing Ring Grapite
7 Yoke A216-WCB A216-WCB A351 CF8 A216-WCB
8 Bonnet A105 A350 LF2/LF3 A182 F304 A182 F11/F22
9 BOlt A193 B7 A320 L7 A193 B8 A193 B16
10 Packing Graphite
11 Stem Bushing A276-410 A276-410 A276-304 A276-410
12 Gland A216-WCB A216-WCB A351 CF8 A216-WCB
13 Eye Bolt A193 B7 A320 L7 A193 B8 A193 B7
14 Stem Nut A276-410
15 Handwheel A197orA47-32510
Performance specification
Performance specification
Norminal Pressure
Class
150 300 600 800 900 1500 2500
(MPa)
Test Pressure		 Shell Test 2.93 7.55 10.0 20.1 15.0 37.5 63.0
High Pressure Seal Test 2.07 5.52 7.31 14.7 11.03 27.5 16.2
Low pressure Seal Test 0.6
Applicable Temperature
 =425?
Applicable Medium
 Water,oil & gas

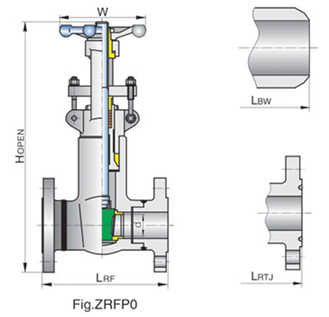

Main Dimensions & Weight
Pressure Size Main Dimension Weight(kg)
mm in d
LRF
LBW
LRTJ
 H W
WB PB WB PB
Class900 15
1/2
 10 216 216 216 197 321 180 9.8 11.5
20
3/4
 13 229 229 229 211 321 180 9.7 11.2
25 1 19 254 254 254 238 321 180 9.5 10.8
32
11/4
 24 279 279 279 257 380 200 17.5 18.0
40
11/2
 40 305 305 305 276 414 200 21.6 22.0
50 2 50 368 368 371 320 502 300 42.7 44.0
Class1500 15
1/2
 10 216 216 216 197 321 180 9.8 11.5
20
3/4
 13 229 229 229 211 321 180 9.7 11.2
25 1 19 254 254 254 238 321 180 9.5 10.8
32
11/4
 24 279 279 279 257 380 200 17.5 18.0
40
11/2
 40 305 305 305 276 414 200 21.6 22.0
50 2 50 368 368 371 320 502 300 42.7 44.0
Class2500 15
1/2
 10 264 264 264 197 321 180 12.3 13.0
20
3/4
 13 273 273 273 211 321 180 21.1 12.7
25 1 19 308 308 308 238 321 180 11.8 12.5
32
11/4
 24 349 349 352.2 257 380 200 20.9 21.8
40
11/2
 40 384 384 387.2 276 414 200 27.5 29.3
50 2 50 451 451 454.2 320 502 300 53.3 55.4



Our Valve Products
Gate valve,Globe valve,Check valve,Ball valve,Butterfly valves,Plug valve,Power station valve,Type Strainer,American Standard Gate Valve,API JIS Gate Valve,Api Gate Valve,Class 2500 Gate Valve,Class 900 Gate Valve,Forged Steel Gate Valve,Gate Valve Class 150,Parallel Slab Gate Valve Class 150,Parallel Slab Gate Valve Class 600,Stainless and Forged Steel Gate Valve,Wedge Type Flange Gate Valve,Gate Valve Class 300 NPS 26

We are one professional Gate Valves manufacturer in china.Our Gate valves products include Gate valve,American Standard Gate Valve,API JIS Gate Valve,Api Gate Valve,Class 2500 Gate Valve, Class 900 Gate Valve,Forged Steel Gate Valve,Gate Valve Class 150,Parallel Slab Gate Valve Class 150,Stainless and Forged Steel Gate Valve,Parallel Slab Gate Valve Class 600, Wedge Type Flange Gate Valve. If you are interested in any of Gate valves products or have a customized requirement to fill, please contact us right now !

Categories
Gate Valves

Forge Steel Bolted Bonnet Gate Valve

Forge Steel Welded Bonnet Gate Valve
CL150,300,600,900,1500,2500LB
BW,NPT,SW,RF,RTJ

ain Dimensions & Weight
Pressure
Size
Main Dimension
Weight(kg)
mm
in
d
LRF
LBW
LRTJ
H
W
Class150
15
1/2
10
108
108
119
162
100
3.0
20
3/4
12.7
117
117
130
162
100
3.5
25
1
19.1
127
127
140
211
125
5.5
32
11/4
24
140
140
153
238
125
6.8
40
11/2
31.8
165
165
178
257
160
10.4
50
2
38.1
178
216
190
282
180
14.4
65
21/2
48.5
190
241
203
357
200
24.5
Class300
15
1/2
10
140
140
151
162
100
3.6
20
3/4
12.7
152
152
165
162
100
4.9
25
1
19.1
165
165
178
211
125
7.0
32
11/4
24
178
178
191
238
125
9.4
40
11/2
31.8
190
190
203
257
160
13.3
50
2
38.1
216
216
232
282
180
18.0
65
21/2
48.5
241
241
257
357
200
26.2
Class600
15
1/2
10
165
165
165
162
100
4.2
20
3/4
12.7
190
190
190
162
100
5.8
25
1
19.1
216
216
216
211
125
 8.8
32
11/4
24
229
229
229
238
125
12.1
40
11/2
31.8
241
241
241
257
160
15.6
50
2
38.1
292
292
295
282
180
19.5
65
21/2
48.5
330
330
333
357
200
32.0
Pressure
Size
Main Dimension
Weight(kg)
mm
in
d
LRF
LBW
LRTJ
H
W
WB
PB
WB
PB
Class900
15
1/2
10
216
216
216
197
321
180
9.8
11.5
20
3/4
13
229
229
229
211
321
180
9.7
11.2
25
1
19
254
254
254
238
321
180
9.5
10.8
32
11/4
24
279
279
279
257
380
200
17.5
18.0
40
11/2
40
305
305
305
276
414
200
21.6
22.0
50
2
50
368
368
371
320
502
300
42.7
44.0
Class1500
15
1/2
10
216
216
216
197
321
180
9.8
11.5
20
3/4
13
229
229
229
211
321
180
9.7
11.2
25
1
19
254
254
254
238
321
180
9.5
10.8
32
11/4
24
279
279
279
257
380
200
17.5
18.0
40
11/2
40
305
305
305
276
414
200
21.6
22.0
50
2
50
368
368
371
320
502
300
42.7
44.0
Class2500
15
1/2
10
264
264
264
197
321
180
12.3
13.0
20
3/4
13
273
273
273
211
321
180
21.1
12.7
25
1
19
308
308
308
238
321
180
11.8
12.5
32
11/4
24
349
349
352.2
257
380
200
20.9
21.8
40
11/2
40
384
384
387.2
276
414
200
27.5
29.3
50
2
50
451
451
454.2
320
502
300
53.3
55.4
Our Valve Products
Gate valve,Globe valve,Check valve,Ball valve,Butterfly valves,Plug valve,Power station valve,Type Strainer,American Standard Gate Valve,API JIS Gate Valve,Api Gate Valve,Class 2500 Gate Valve,Class 900 Gate Valve,Forged Steel Gate Valve,Gate Valve Class 150,Parallel Slab Gate Valve Class 150,Parallel Slab Gate Valve Class 600,Stainless and Forged Steel Gate Valve,Wedge Type Flange Gate Valve,Gate Valve Class 300 NPS 26

We are one professional Gate Valves manufacturer in china.Our Gate valves products include Gate valve,American Standard Gate Valve,API JIS Gate Valve,Api Gate Valve,Class 2500 Gate Valve, Class 900 Gate Valve,Forged Steel Gate Valve,Gate Valve Class 150,Parallel Slab Gate Valve Class 150,Stainless and Forged Steel Gate Valve,Parallel Slab Gate Valve Class 600, Wedge Type Flange Gate Valve. If you are interested in any of Gate valves products or have a customized requirement to fill, please contact us right now !

Categories
Gate Valves

Forge Steel Bolted Bonnet Gate Valve

Forge Steel Bolted Bonnet Gate Valve
CL150,300,600,800,900,1500Lb
BW,SW,NPT,RF,RTJ

Material list for main parts
No. Part name ASTM
Carbon steel Tainless steel Alloy steel
1 Body A105 LF2/LF3 A182 F304 A182 F11/F22
2 Seat A182F6a A182F6a A182 F304 A182 F6a
3 Wedge A182F6a A182f6a A182 F304 A182 F6a
4 Stem A276-410 A276-410 A276-304 A276-410
5 Gasket Graphite+304
6 Sealing Ring Grapite
7 Yoke A216-WCB A216-WCB A351 CF8 A216-WCB
8 Bonnet A105 A350 LF2/LF3 A182 F304 A182 F11/F22
9 BOlt A193 B7 A320 L7 A193 B8 A193 B16
10 Packing Graphite
11 Stem Bushing A276-410 A276-410 A276-304 A276-410
12 Gland A216-WCB A216-WCB A351 CF8 A216-WCB
13 Eye Bolt A193 B7 A320 L7 A193 B8 A193 B7
14 Stem Nut A276-410
15 Handwheel A197orA47-32510
Performance specification
Norminal Pressure
Class
150 300 600 800 900 1500 2500
(MPa)
Test Pressure		 Shell Test 2.93 7.55 10.0 20.1 15.0 37.5 63.0
High Pressure Seal Test 2.07 5.52 7.31 14.7 11.03 27.5 16.2
Low pressure Seal Test 0.6
Applicable Temperature
 =425?
Applicable Medium
 Water,oil & gas
Main Dimensions & Weight
ain Dimensions&Weight
Pressure
Structure
Size
Main Dimension
Weight(kg)
mm
in
d
L
H
W
?
?
?
?
?
?
?
?
Class 150~600
Class800
OS&Y
8
–
1/4
–
7
–
79
166
100
2.2
–
10
8
3/8
1/4
10
7
79
166
100
2.2
2.2
15
10
1/2
3/8
10
10
79
166
100
2.2
2.2
20
15
3/4
1/2
13
13
92
169
100
2.2
2.2
25
20
1
3/4
18
18
111
193
125
4.7
4.3
32
25
11/4
1
24
24
120
236
160
5.9
5.9
40
32
11/2
11/4
29
29
120
146
160
6.9
6.9
50
40
2
11/2
36.5
36.5
140
283
189
11.1
11.1
–
50
–
2
–
46.5
178
330
200
–
15.2
Class 150~600
Class800
ISRS
8
–
1/4
–
7
–
79
169
100
2.2
–
10
8
3/8
1/4
10
7
79
169
100
2.2
2.4
15
10
1/2
3/8
10
10
79
169
100
2.2
2.4
20
15
3/4
1/2
13
13
92
182
100
2.2
2.3
25
20
1
3/4
18
18
111
208
125
4.6
4.8
32
25
11/4
1
24
24
120
254
160
5.9
6.1
40
32
11/2
11/4
29
29
120
290
160
6.9
7.2
50
40
2
11/2
36.5
36.5
140
330
180
11.1
11.2
–
50
–
2
–
46.5
178
372
200
–
14.1
Our Valve Products
Gate valve,Globe valve,Check valve,Ball valve,Butterfly valves,Plug valve,Power station valve,Type Strainer,American Standard Gate Valve,API JIS Gate Valve,Api Gate Valve,Class 2500 Gate Valve,Class 900 Gate Valve,Forged Steel Gate Valve,Gate Valve Class 150,Parallel Slab Gate Valve Class 150,Parallel Slab Gate Valve Class 600,Stainless and Forged Steel Gate Valve,Wedge Type Flange Gate Valve,Gate Valve Class 300 NPS 26

We are one professional Gate Valves manufacturer in china.Our Gate valves products include Gate valve,American Standard Gate Valve,API JIS Gate Valve,Api Gate Valve,Class 2500 Gate Valve, Class 900 Gate Valve,Forged Steel Gate Valve,Gate Valve Class 150,Parallel Slab Gate Valve Class 150,Stainless and Forged Steel Gate Valve,Parallel Slab Gate Valve Class 600, Wedge Type Flange Gate Valve. If you are interested in any of Gate valves products or have a customized requirement to fill, please contact us right now !
